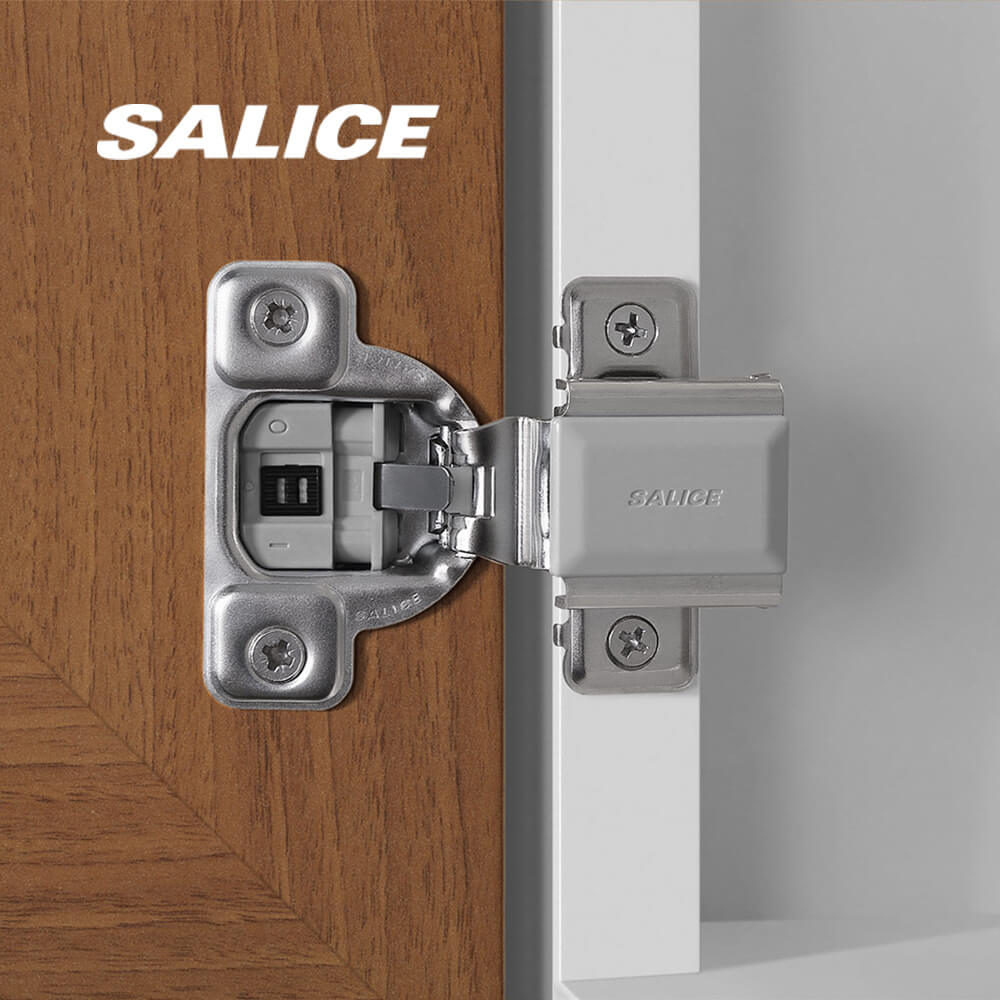

Salice Series S concealed face frame hinges, with integrated soft-close, feature a one-piece design and simple to use adjustable cams for side-to-side, in-and-out and up-and-down door movement. Each hinge has an activation switch which can be turned off of one hinge in a pair of hinges if the soft-close action is too slow for small doors. Available in screw-on or press in nylon dowel versions. Stamped steel. Minimum door thickness 14mm (9/16″). Maximum door thickness 22mm (7/8″). Cup depth 11mm (7/16˝). Opening 106°. Edgemount (front tabs only). All Silentia face frame hinges have a variable drilling distance (K) of 2.5 mm – 6.0 mm. #6 x 5/8˝ flat head wood screw Side, height and depth adjustments. See Hinge Specifications Here
